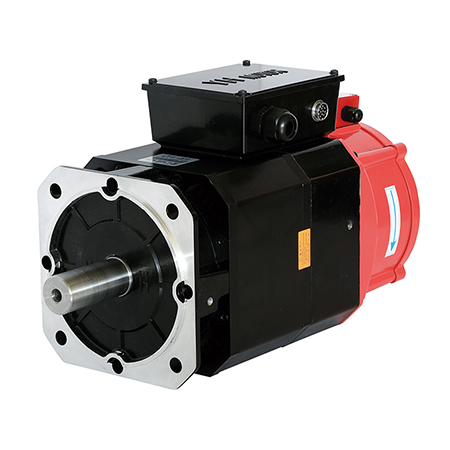

Polarnummer: 5
Inkremental Encoder Kabel: 2500/5000PPR
Absolutwertgeber: 17bit
Absolute Ebene: B
Schutzart: IP65
Isolierung und Widerstand Spannung: AC1500V, 1 Minute
Isolationswiderstand: DC500V, über 10M Ω
Struktur: Selbstkühlung
Vibration: unter 2,5G
Höhe: unter 1000 Meter
Technical parameters
| Motor Model | 204ZJY-4-2.2-15-X | 204ZJY-4-3.7-15-X | 204ZJY-4-5.5-15-X | 204ZJY-4-7.5-15-X |
| Rated Power(KW) | 2.2 | 3.7 | 5.5 | 7.5 |
| Rated Voltage(V) | 380 | 380 | 380 | 380 |
| Rated Current(A) | 5.1 | 8 | 11.5 | 16 |
| Rated Torque(N.m) | 14 | 24 | 35 | 50 |
| Rated Frequency(HZ) | 50 | 50 | 50 | 50 |
| Rated speed(rpm) | 1500 | 1500 | 1500 | 1500 |
| Max speed(rpm) | 6000 | 6000 | 6000 | 6000 |
| Rotor inertia(G.D2) | 0.01 | 0.014 | 0.015 | 0.025 |
| Fan power(W) | 75 | 75 | 75 | 75 |
| Fan voltage(V) | 380 | 380 | 380 | 380 |
How to use
1, U, V, W motor wiring must maintain a relationship with U, V, W terminal driver.
2, no end or the motor axial force on the motor shaft, to avoid damage to the encoder and motor bearing.
3, to ensure that the motor terminal box terminal effectively grounded in mainland.
4, motor speed control, must ensure the normal operation of cooling fan.
The surface temperature of the running process, the motor 5 is high, avoid touching to prevent burns by hand.
6, fan connection must be consistent with the wind in the sign.
| Serial number | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
| Signal | Shield | Z+ | B+ | A+ | 0V | T | Z- | B- | A- | +5V |
Note: T is the motor thermal protection switch
Drawing of flange installation dimensions Unit: mm

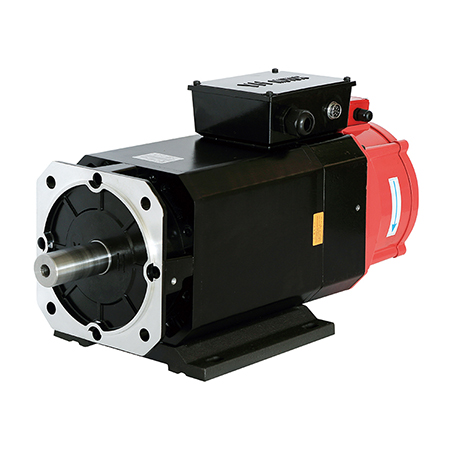

Horizontal installation dimension drawing Unit: mm
